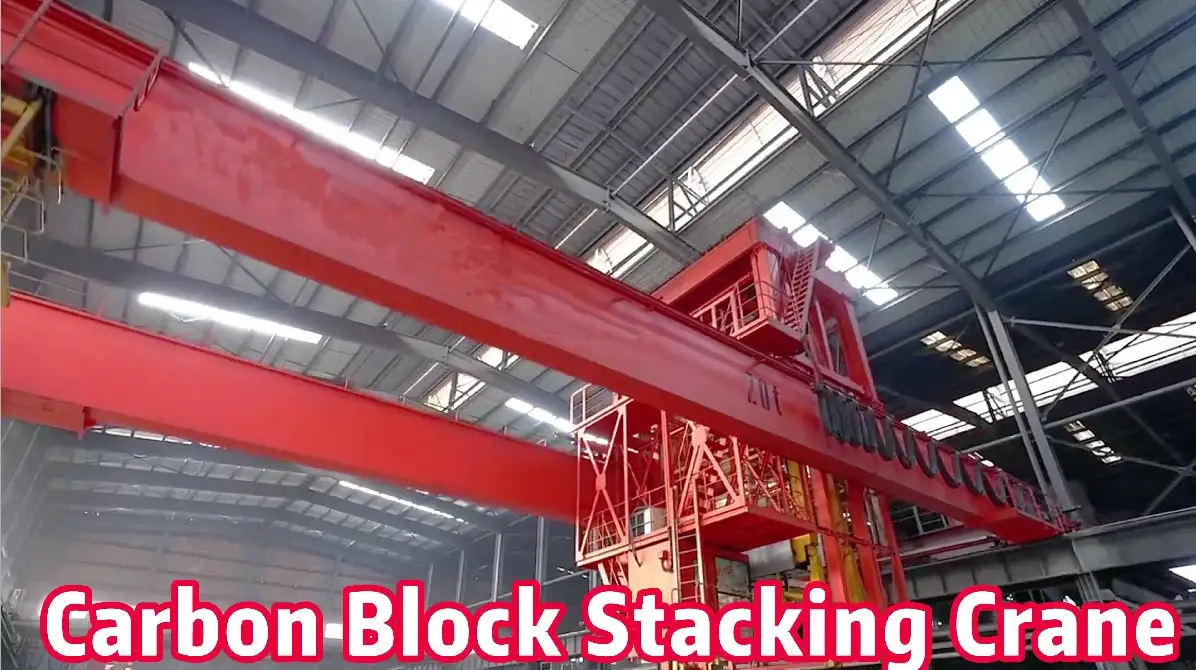

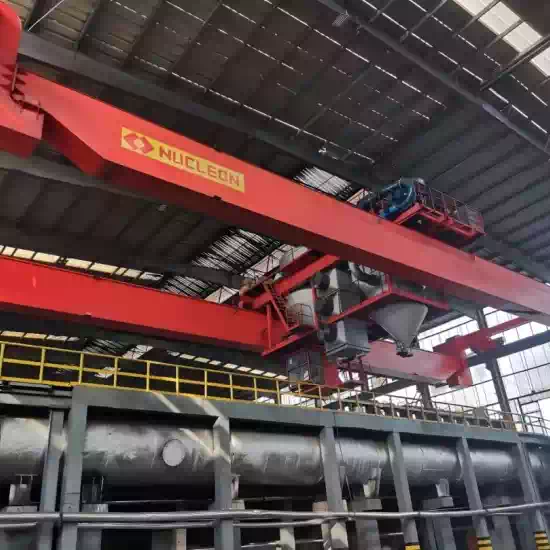

The Multifunctional Baking Crane is a specialized overhead crane designed specifically for the anode carbon block roasting process line. This purpose-built equipment serves as a key component in anode baking operations within carbon plants, integrating a vacuum suction system, dust purification system, and specialized anode carbon block clamping mechanisms.
A dedicated overhead handling solution for carbon anode processing in aluminum electrolysis production, featuring integrated material conveying, dust control, and precision clamping systems.
Application Scope & Technical Parameters
Core Functions:
Loading Operation: Positioning and placing raw, unbaked anode blocks into baking furnace pits
Filling Process: Distributing granular coke (0.8–5mm) into spaces between anodes and furnace walls, followed by top layer covering
Material Extraction: Vacuum-based removal of filler material from furnace chambers with transfer to storage silos (capacity: 30/40/65 t/h)
Unloading Process: Extraction of finished baked anodes and transportation to conveyor systems or storage areas
Auxiliary Operations: Supporting additional material handling requirements within the workshop
Technical Specifications:
Anode Clamping Capacity: 2×6t (equivalent to handling 14 anode blocks simultaneously)
Filler Coke Specifications:
Particle size range: 0.8–5mm
Operating temperature tolerance: ~450°C (short-term exposure to 600°C)
Duty Classification: A8 (engineered for continuous heavy-duty operation cycles)
Structural Configuration
The FTM crane employs a modular design approach, with primary variations in anode clamping mechanisms (integrated tool trolley or independent configurations). Major components include:
Electrically driven control and power systems
Modular tool trolley (optimized for seamless process integration)
Bridge girder assembly (high-strength Q355B steel with compact geometry)
Travel mechanisms (3-in-1 geared motor units with high-capacity load wheels)
Hoisting and lifting assemblies
Key Product Advantages：
Space-Optimized Robust Construction
Compact footprint with FEM-validated steel structural design
Modular subsystem architecture for simplified maintenance access
Integrated Multi-Process Capability

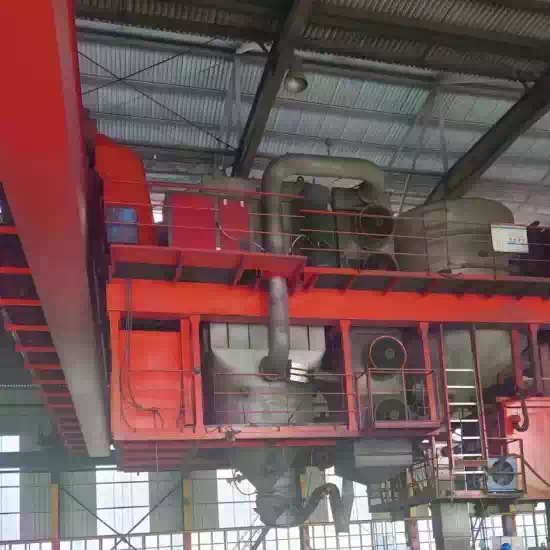

High-capacity vacuum material transfer (up to 80 m³/h with reinforced piping)
Multi-stage cooling and dust management (cyclone separation + bag filtration, emissions ≤10mg/m³)
Precision anode block manipulation and positioning
Furnace equipment handling and relocation capacity
Intelligent Operation & Efficiency
PLC-based automated control (supporting semi-automatic and fully automated modes)
Variable frequency drive systems for smooth operational transitions
A7-A8 duty rating suitable for continuous 24/7 production environments
Environmental Compliance & Safety
Dust-controlled operation with closed-loop material recovery
Comprehensive overload protection and redundant brake safety systems
Adaptable Configuration Options
Customizable trolley and lower beam arrangements to match specific workshop layouts
4-wheel per side travel configuration to minimize wheel load and structural requirements
Primary Industry Applications
Primary aluminum smelting operations
Carbon anode manufacturing facilities
Metallurgical processing plants
Mining and raw material handling operations
